1. retrieve OCPP URL in our app
- Open our app on your smartphone or tablet.
- Search for the area where you can add devices or create new connections. This area could be called “Devices”, “Settings”, “Integrations” or similar.
- Tap on “Add device”, “Create new connection” or a similar option.
- Select “Wallbox” or “Charging station” from the list of available device types.
- Select “OCPP 1.6” as the manufacturer.
- The app will now show you an OCPP URL. This URL looks something like this:
ws://cleverpv-ocpp.azurewebsites.net/ocpp/abcd1234
- Make a note of this URL as you will need it in the next step.
2. configure OCPP settings in the cFos Power Brain Wallbox
- Open the web interface of your cFos Power Brain Wallbox.
- Click on the green gear icon (“Settings”) in the wallbox tile.

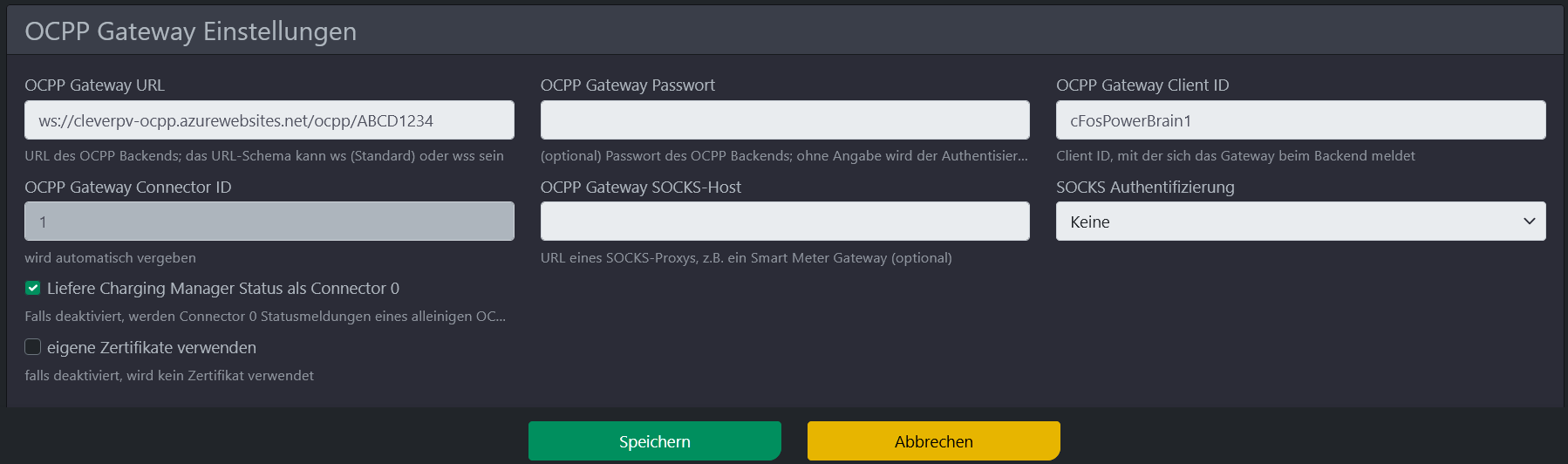

- Navigate to the “OCPP Gateway Settings” section.
-
Enter the previously noted OCPP URL in the “OCPP Gateway URL” field.
-
Enter any identifier in the “OCPP Gateway Client ID” field. This ID will be used later in our app to identify your wallbox.
-
Leave all other fields in the “OCPP Gateway settings” section empty.
Click on “Save”. -

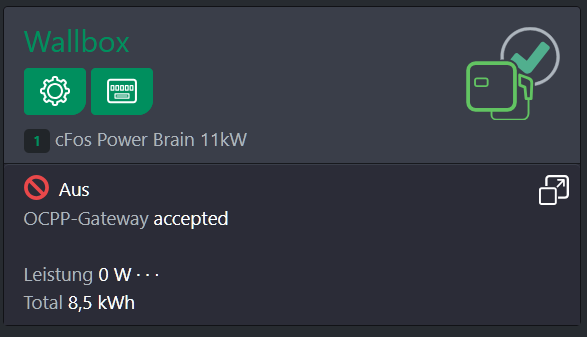

Wait a few seconds. The text “OCPP Gateway accepted” or a similar message should now appear in the wallbox tile. This confirms that the wallbox is successfully connected to the backend of our app.
3. complete the setup in our app
- Switch back to our app.
- Follow the instructions in the app to complete the setup of your wallbox.
- You should now be able to control your wallbox via our app
