Important: To let us control the charging power of your wallbox, it needs at least firmware version 1.9.2. With older firmware, the wallbox rejects our power limits and always charges at full power.
You can add the Peblar Home and Business with us.
This is connected to us via OCPP.
We support the Peblar Home and Business.
To connect your Peblar with us, proceed as follows:
- For the first time commissioning, please connect to the wan hotspot of the station. Use the QR codes provided to establish the WLAN connection and access the web interface. You can find detailed instructions on this in the included quick start guide.
- Open the web interface using the IP (this can be found in your home network overview in your router) or alternatively with the enclosed IP address

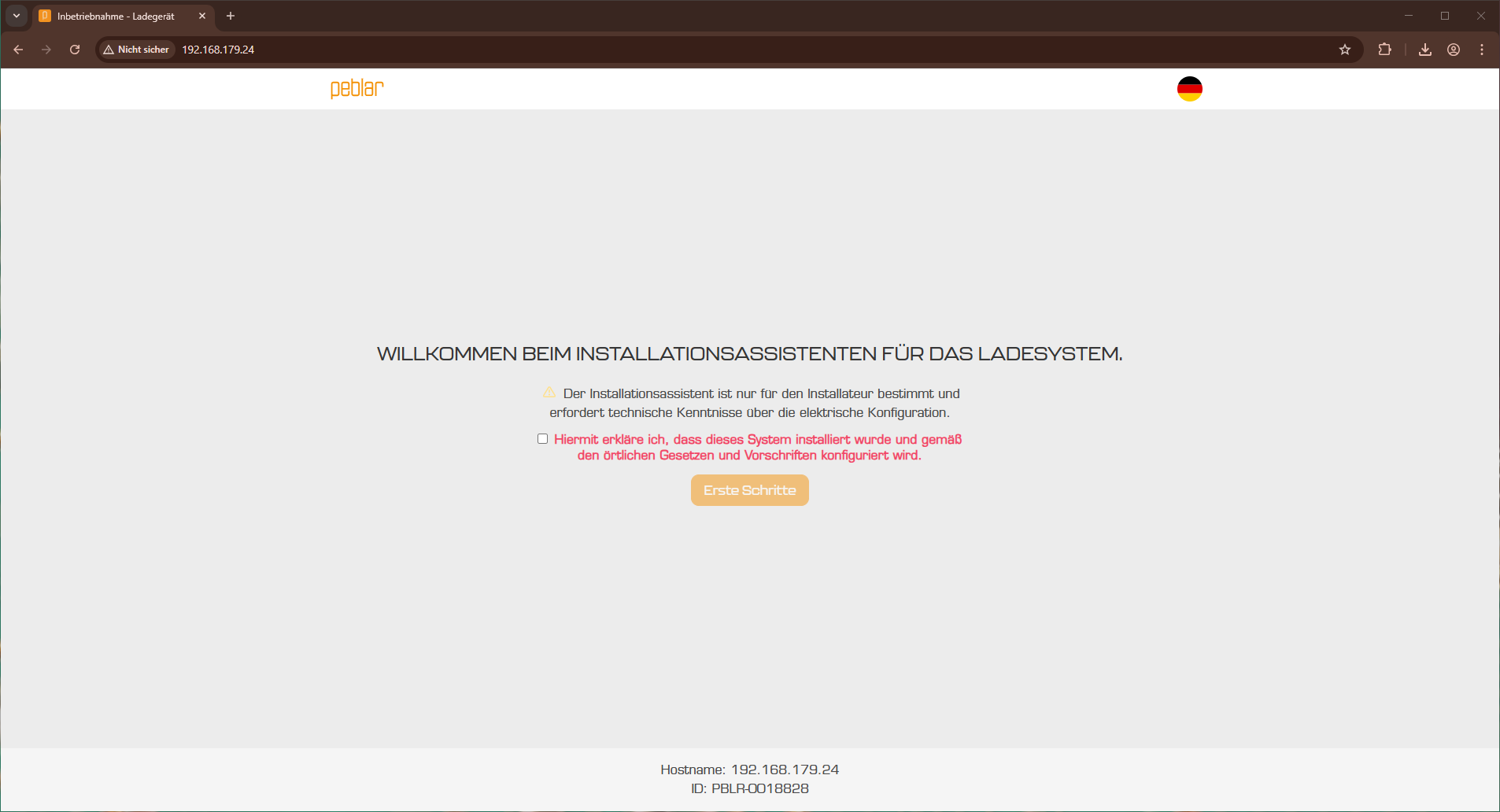

- Press the "first steps"

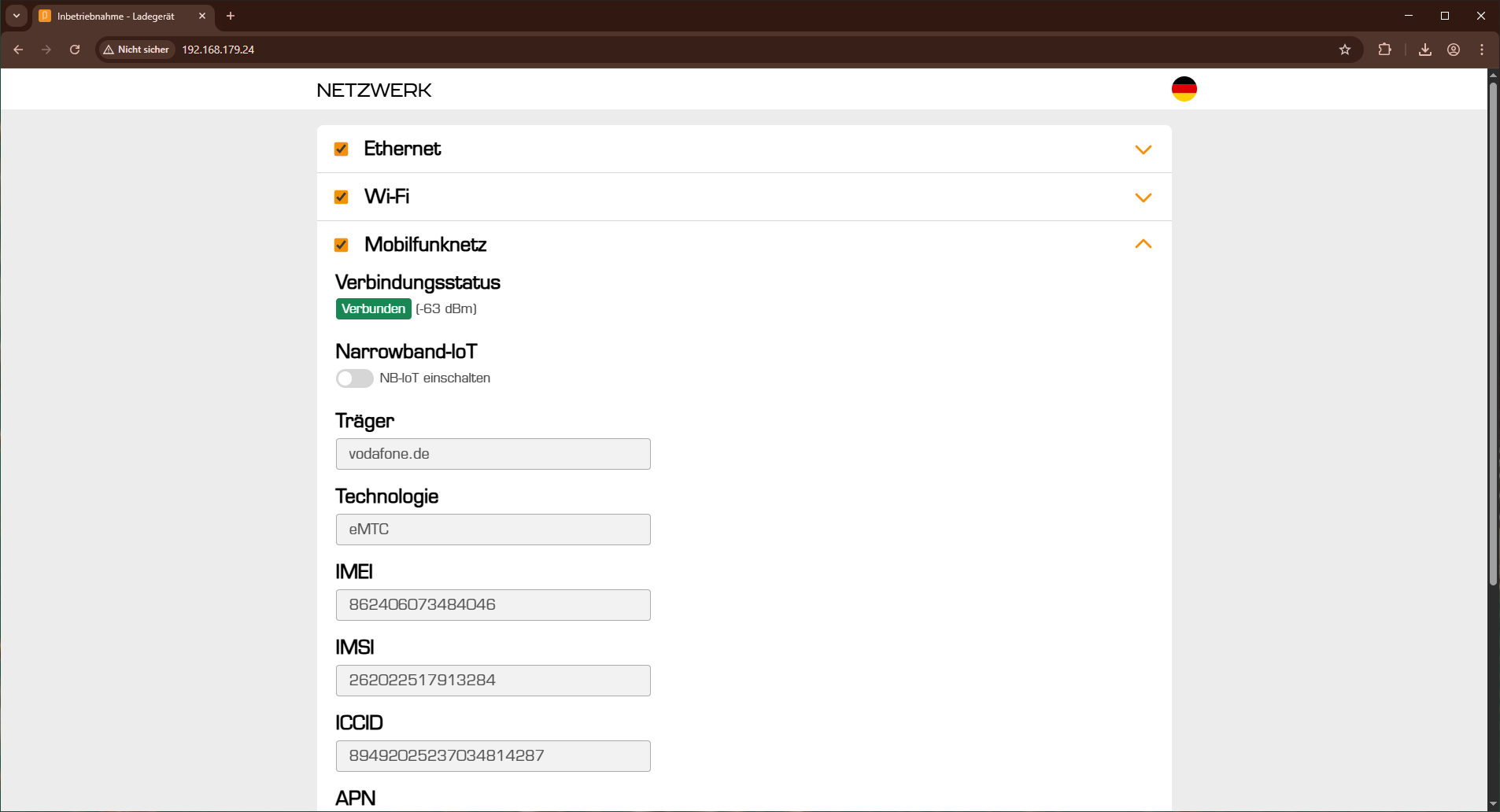

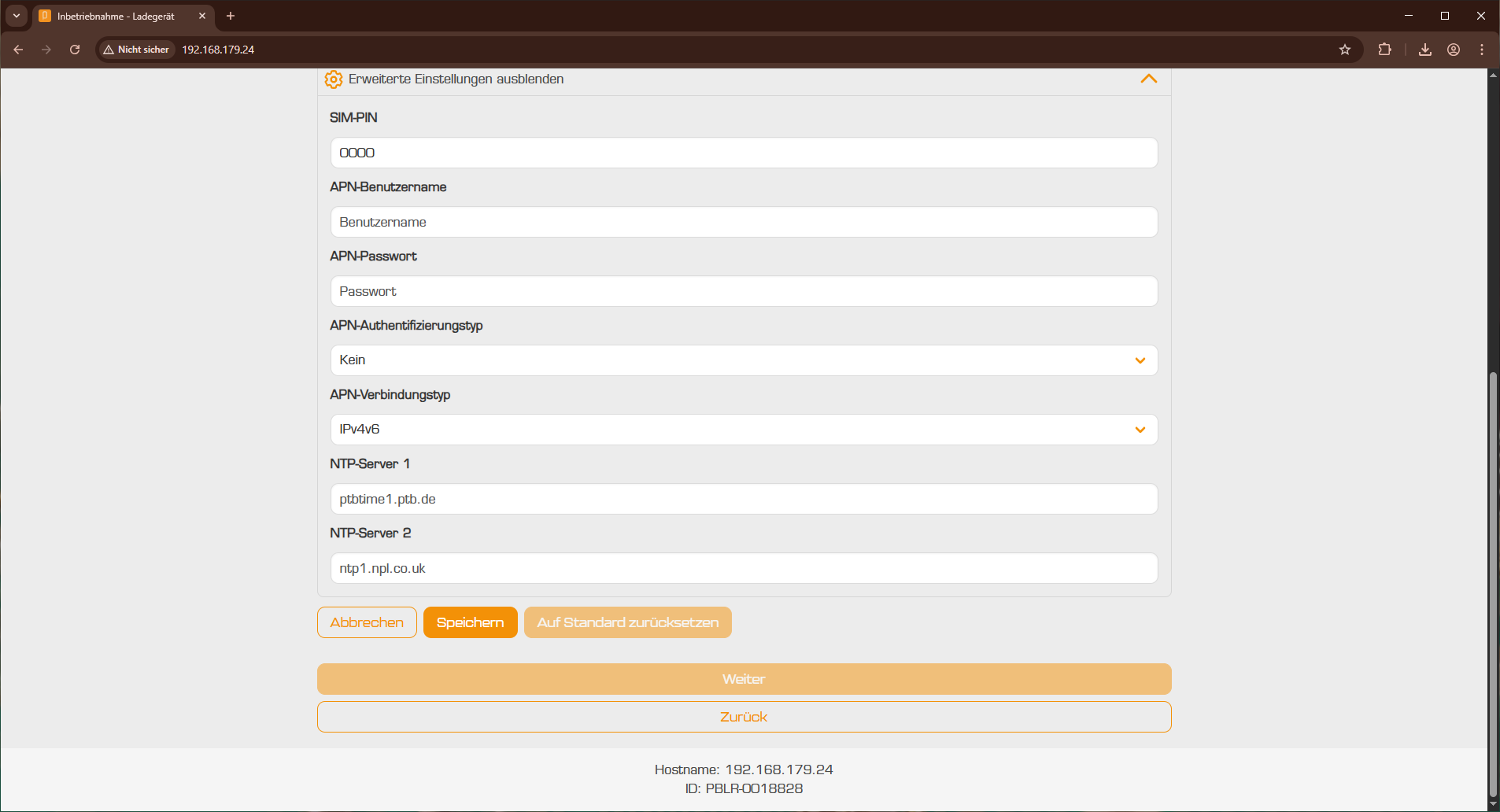

- Set up your network (LAN, if necessary Wi-Fi and mobile communications)

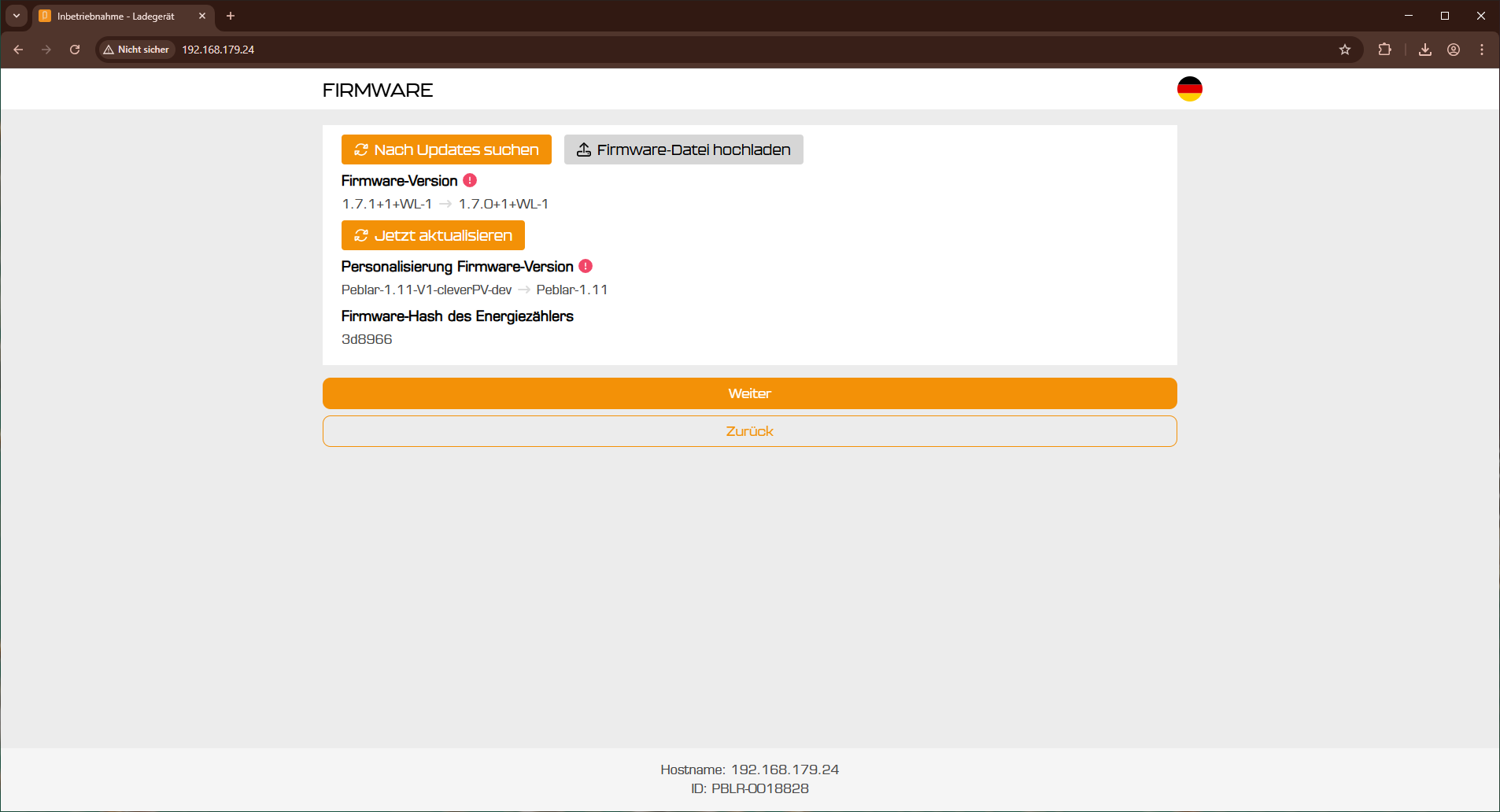

- Press "search for updates", then to "update now" to install the latest version

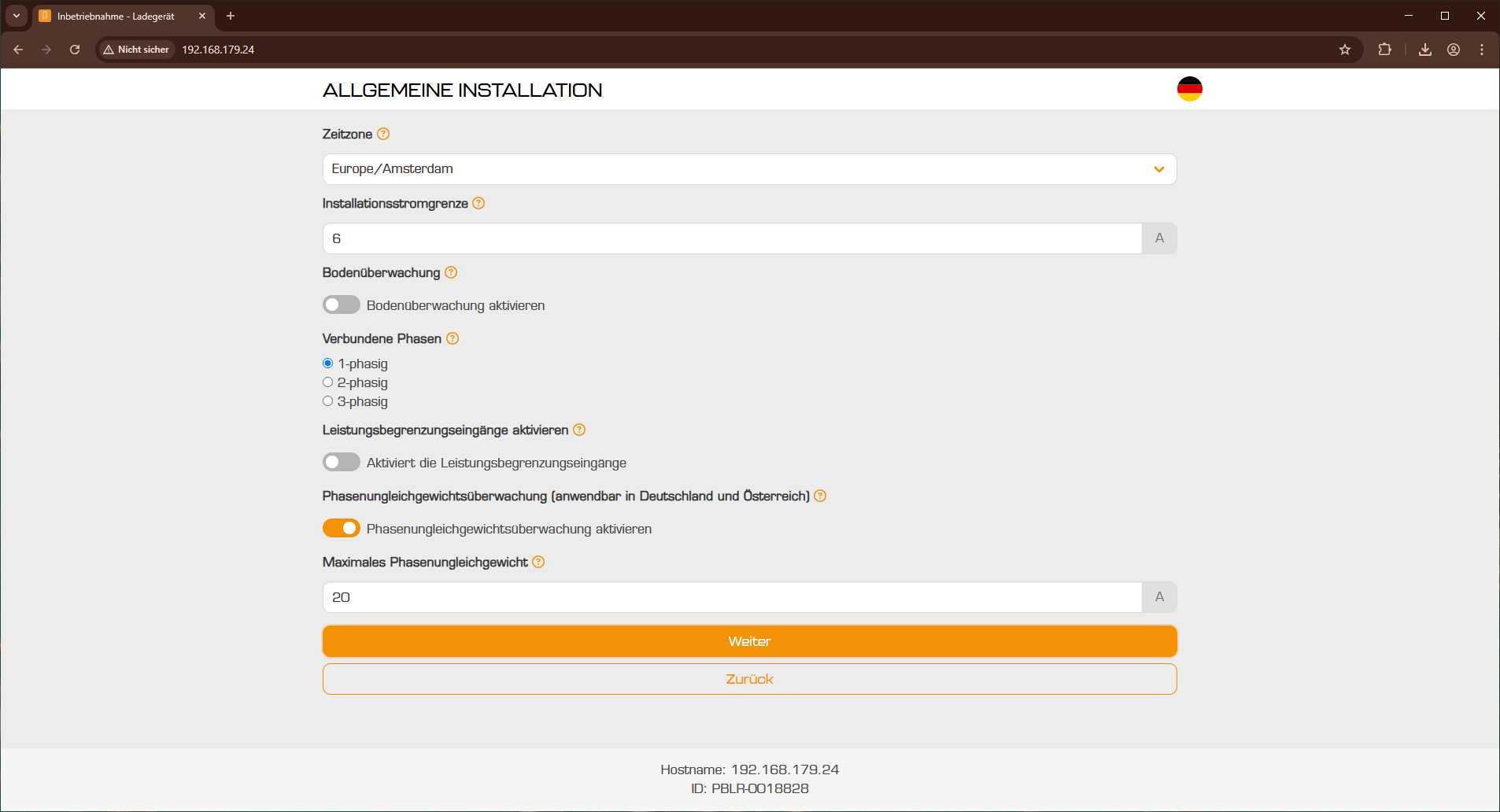

- Choose your power limit, i.e. if necessary with your electrician/installer
- Choose how many phases the wall box is connected with
- Set "activate group load compensation" on "No" if you do not use any further wall boxes.
- Choose your setting for the "dynamic load compensation".

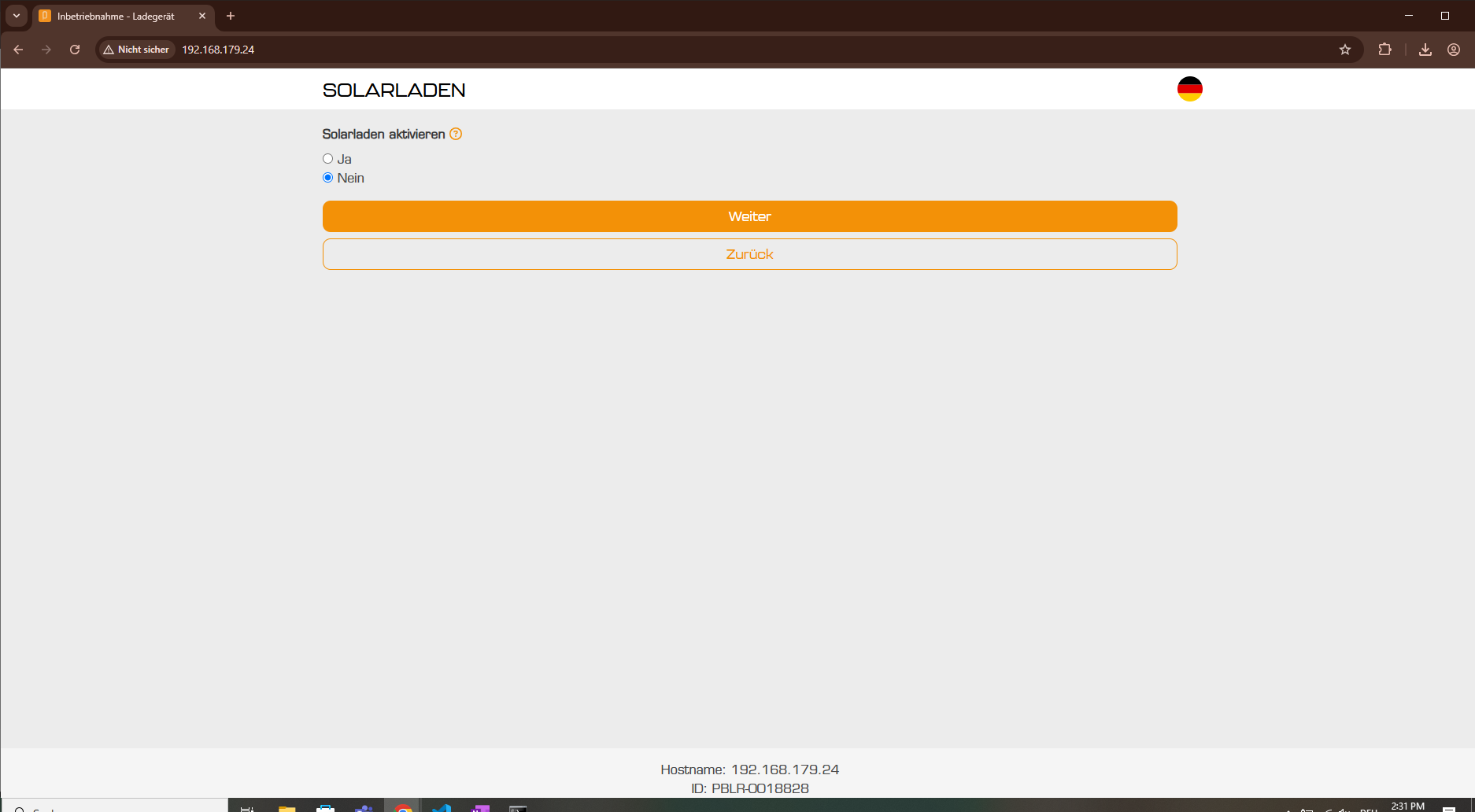

- Set "Activate solar shop" on "No"

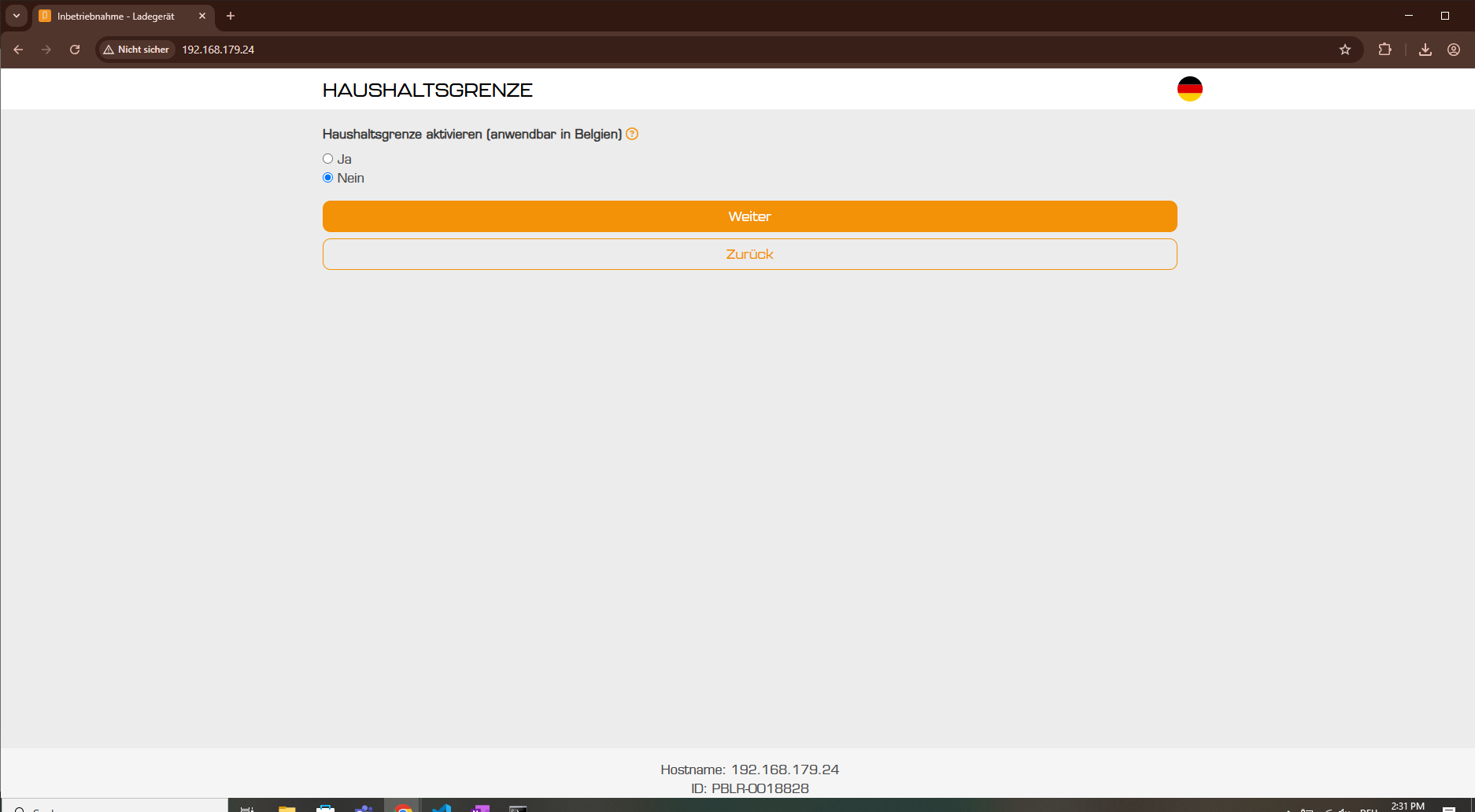

- Set "activate household limit" on "No"

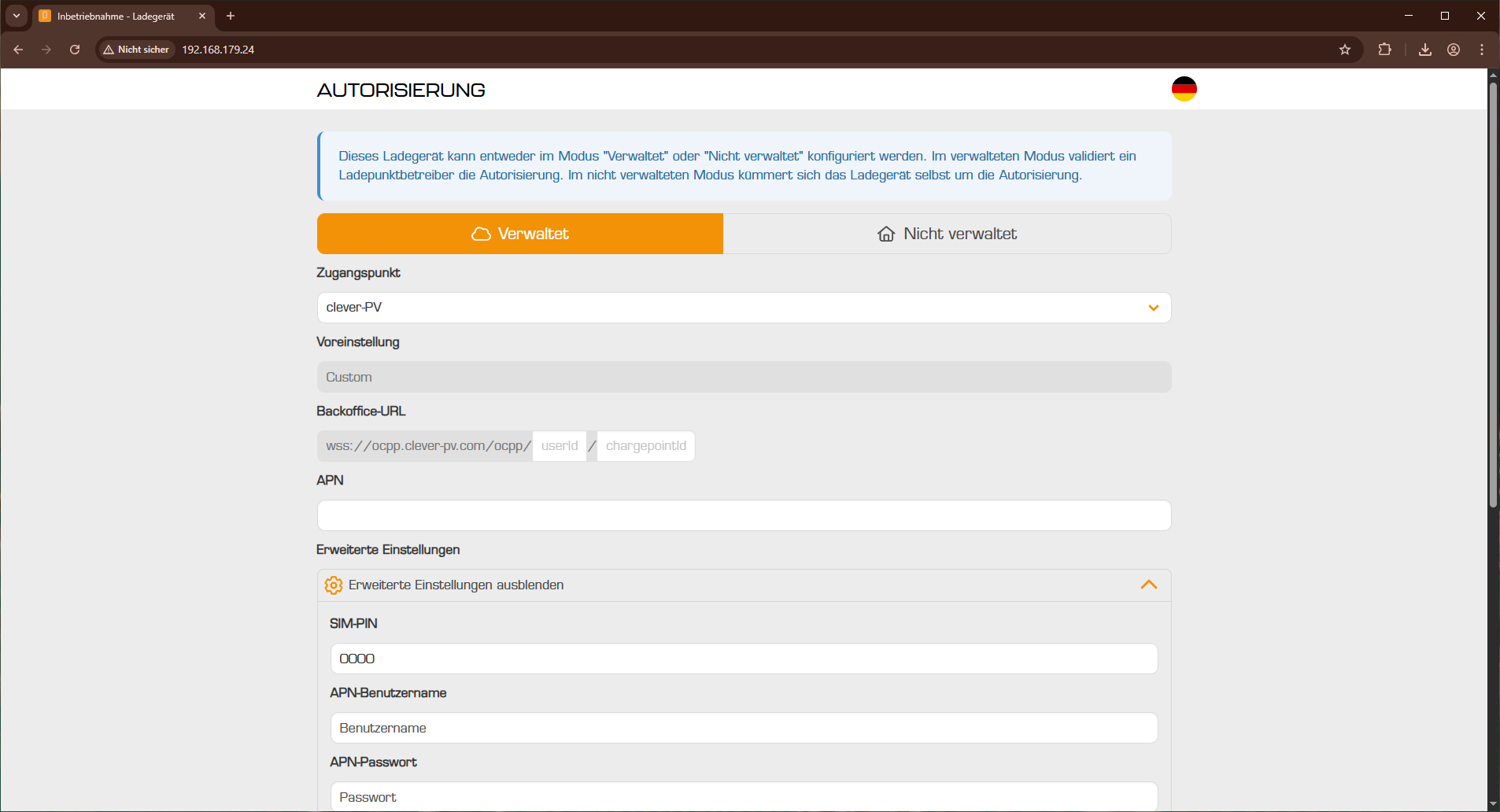

- Now establish the OCPP connection, enter Clever-PV at the access point.
- Add the OCPP link displayed in our app at "Backoffice URL". wss://ocpp.clever-pv.com/ocpp/XXXXXXXX/Chargeopoinide. You get the red part from us, then enter the chargepointide of your Wallbox.
- Fill out the other fields as displayed, then "save" and "Next"

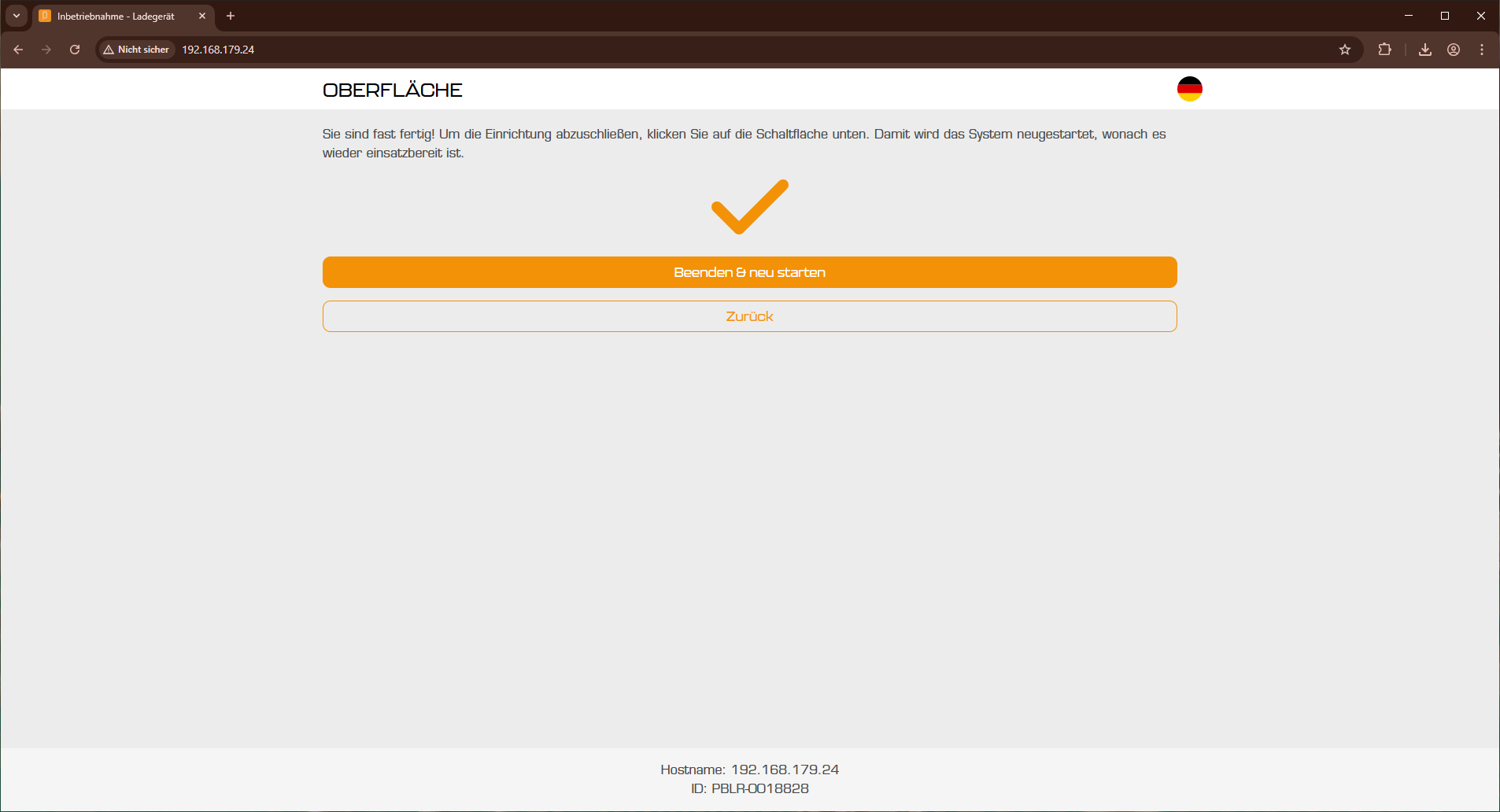

- Finally to "end & restart"
The device should be selected in our app after the restart.
If it is not yet selected, please start a charging process.
Q: What do I do if my Peblar/Chargeline has already been configured?
A: If the Wallbox has already been configured, re -commissioning must first be started.
Q: My Peblar/ChargeLine always charges at full power and does not follow the solar surplus. What can I do?
A: Check the firmware version in the web interface of your wallbox. If it is older than 1.9.2, click "Check for updates" and then "Update now". After the reboot, the wallbox follows our charging limits again.
